LM-K103TRU

LINK-MI LM-K103TRU 300m Single Cat5e/6 USB VGA KVM Extender

Introduction:

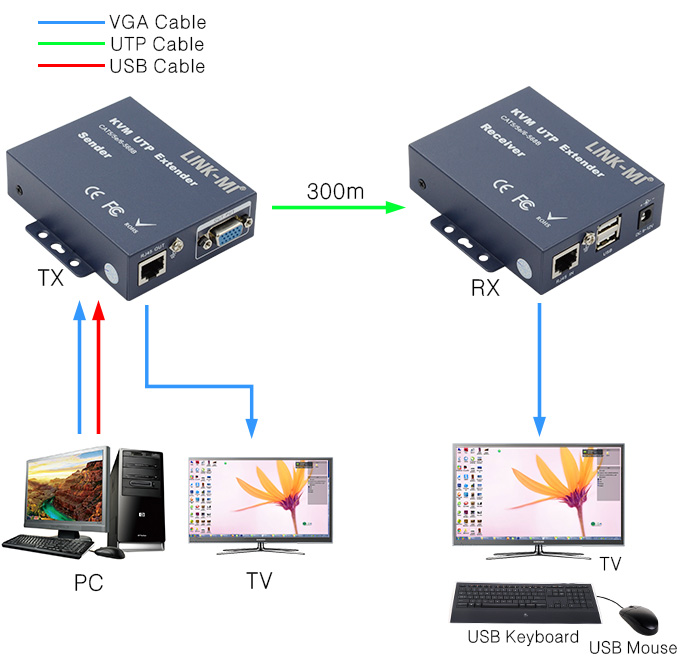

1.It can extend the power switch of the computer, keyboard, mouse and video port max of 300m
2.It can be switched from remote monitor to local monitor or switched from local monitor to remote monitor by the keystroke on the Sender or SCROLL on the local keyboard
3.Use the single cable (CAT5,CAT5E,CAT6), the cost is inexpensive
4.It supports (USB) keyboard and mouse, it supports (VGA) port monitor
5.It can remove and insert the local and remote keyboard and mouse
6.Power on computer use the emulational keyboard and mouse
7.It supports DOS, Windows, Linux, Unix system
8.It does not need a driver, it is simple to install
9.The remote keyboard and mouse display is in real-time
10.The anti-jamming is strong
11.The anti-lightning and anti-invasion is strong Cascade operation for increasing the distance
12.Index of anti-lightning and anti-invasion: withstand air-discharge 15KV, contiguity-discharge 8KV

Description

Specification

 Brand

 LINK-MI

 Model No.

 LM-K103TRU

 Material

 Metal

 Color

 Blue

 Interface

 VGA Video and USB Signal

 Application

 Extend VGA Video and USB Signal Over single Cat5e/6 Cable up to 300m

 Input Connector

 1-ch VGA + 1-ch USB

 Output Connector

 1-ch VGA, 2-ch USB

 Local Output

 HD 15pin VGA

 Bandwidth

 300m

 680MHz

 Input Level Range

 0.5-2.0 Volts P-P

 Input Level Error

 Less than 3mV

 Input Impedance

 75W

 Output Impedance

 75W

 Echo Ullage

 -30dB @ 5MHz

 Max. DC Compensation

 ±5mV-0

 SNR

 60dB

 Connector Standard

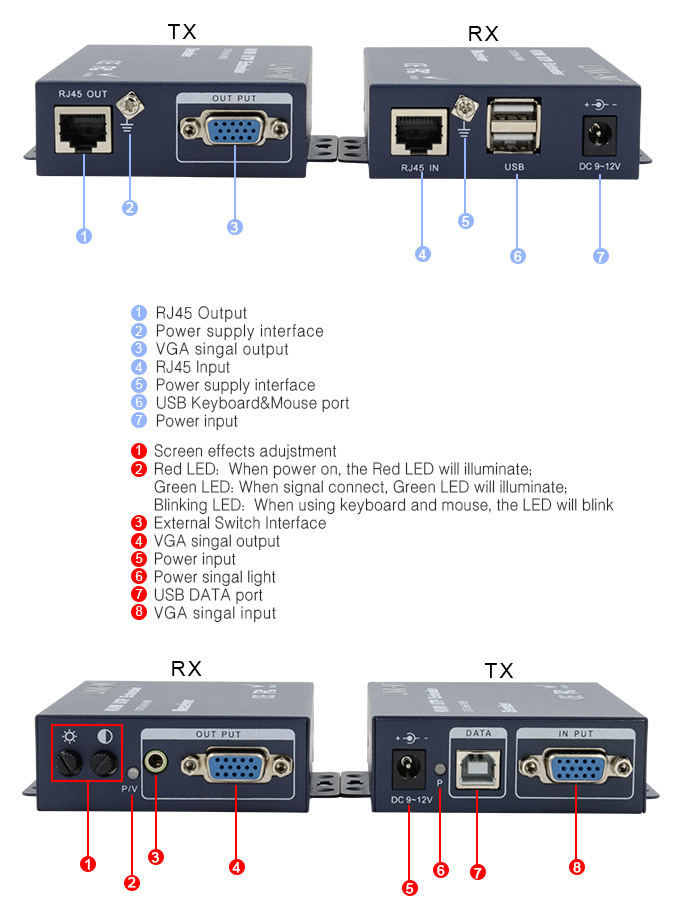

 HDB15, USB, Mini-DIN6, RJ45

 Video Standard

 VGA, SVGA, XGA, SXGA, UXGA, LCD

 Cable Standard

 CAT5, CAT5E, CAT6 UTP

 Power Adapter

DC 12V 500mA

 Operating Temperature Range

 -25 to +70 Degree Celsius

 Deposited Temperature Range

 -40 to +80 Degree Celsius

 Relative Humidity

 0 to 95%RH ( No Condensing )

 MTBF

 >30000 hours

Packing Contents

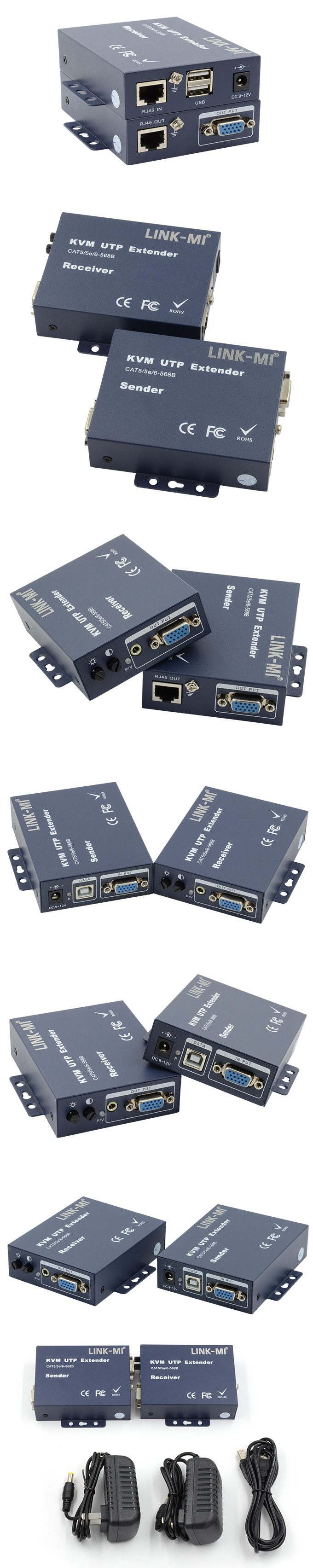

1. Main Unit. USB VGA KVM Extender Transmitter and Receiver

2. DC 12V 1A Power Adapter

3. USB Cable

4. User Manual
